UTP CAT5e network cable

UTP CAT5e network cable

Short Description:

  CAT-5 UTP Lan Cable/network cable: Conductor:  Material: Solid Bare Copper Number of pairs: 4 pairs AWG: 23AWG Conductor diameter: 0.5 ±0.003mm Sheath:  Material: PVC or LSZH Nominal diameter: 5.0 ±0.2mm Average thickness: 0.55mm Minimum point thickness: 0.545mm Includes: Central Cross Frame Jacket:PVC / LSZH Standard: YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156 Application : Horizontal cabling in working area.Used in voice system,ISDN, ATM-25/51/155Mbps,10BASE-T,100BASE-TX...


  • FOB Price: unknow
  • Min.Order Quantity: 5000pcs
  • Supply Ability: 500000pcs/month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • :
  • Product Detail

    Product Tags



    CAT-5 UTP Lan Cable/network cable:

    Conductor:

    Material: Solid Bare Copper

    Number of pairs: 4 pairs

    AWG: 23AWG

    Conductor diameter: 0.5 ±0.003mm

    Sheath:

    Material: PVC or LSZH

    Nominal diameter: 5.0 ±0.2mm

    Average thickness: 0.55mm

    Minimum point thickness: 0.545mm

    Includes:

    Central Cross Frame

    Jacket:PVC / LSZH

    Standard:

    YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156

    Application :

    Horizontal cabling in working area.Used in voice system,ISDN,

    ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
    CE, UL, RoHS available

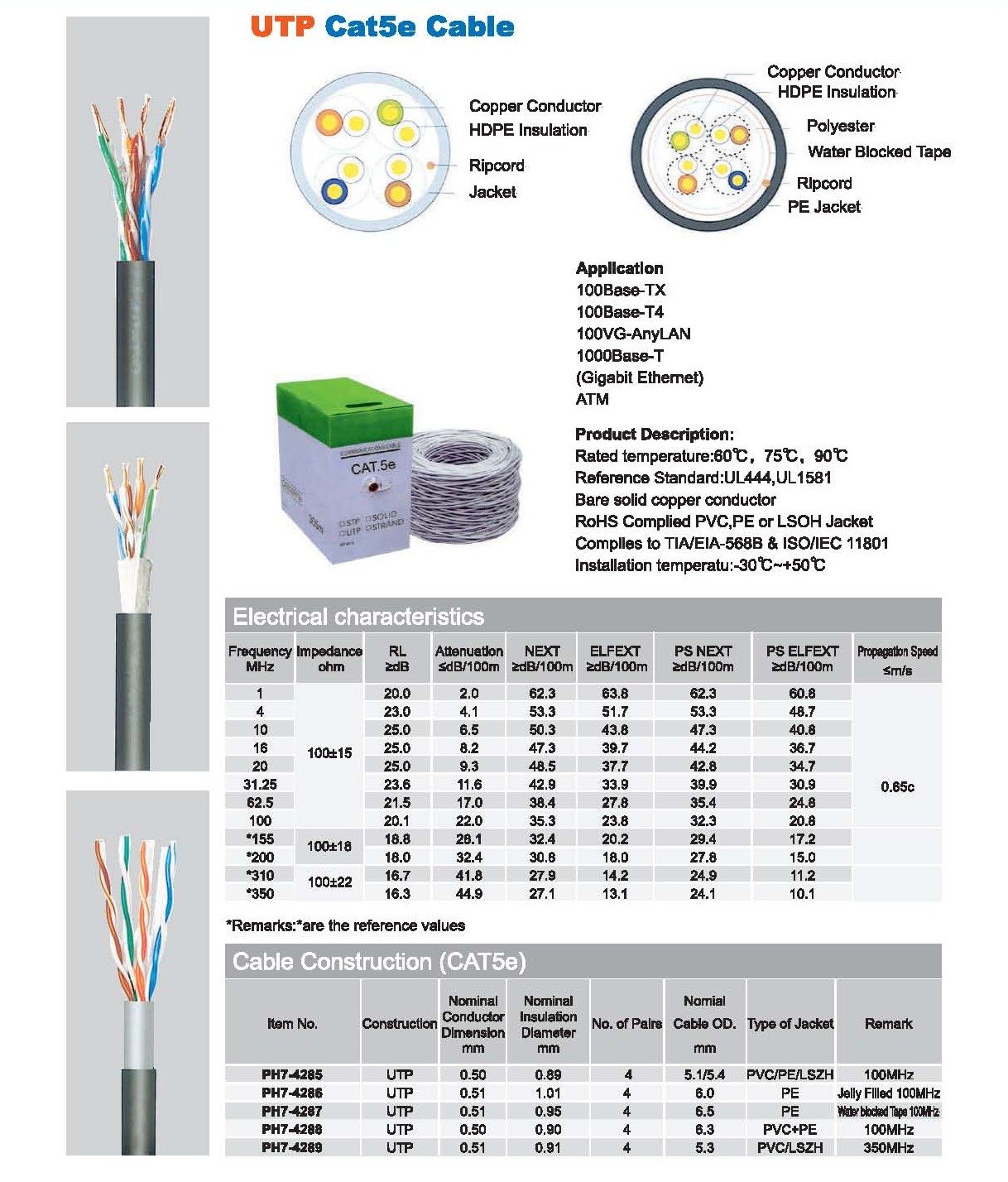

    Model Indoor Cat6 Cat5 UTP Network. Cable
    Conductor Material Copper/CCA
    Conductor Dimension 0.4mm /0.5mm
    insulation thickness 0.18mm
    The thickness of Jacket 0.55mm
    Outer Diameter 5mm±0.2mm
    Insulation HD-PE (High density polyethylene)
    Number of Twisted Pair 4P
    Shielding UTP
    Ripcord yes/no Yes
    Jacket PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen)
    Color different color is available
