Good Quality RG59 RG6 F CONNECTOR Wholesale to Qatar Detail:

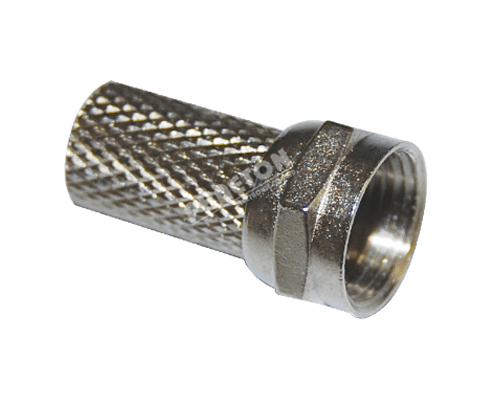

RG59 RG6 F CONNECTOR

Specifications

RF Connector

1.Accept 0.5~1.0mm Center Conductor

2.Low Cost with High Performance

Features:

1.Excellent insertion/withdrawal characteristics

2.BeCu contact is available from 0.55~1.02mm center conductor sizes

3.Copper body (Zinc ally body available at your request)

Applications:

1.CATV

2.Set Top Boxes

3.Cable Assemblies

4.Cable Modems

Electronical Specifications

F type catv Connector compressed

Color: golden plated

Materials: New Brass

Size: For RG6 coaxial cable

Sealed permanent

High performance Nickel plated connector f compressed for Cable RG6

Universal so it works with all RG-6 Cable (60% thru Quad)

Compression Connector with Dual O-Rings

All Brass Construction

Package : 50 or 100 pieces in one clear bag

Meets SCTE Specifications

Product Specifications
Bandwidth:	0MHz to 3GHz
Impedance:	75Ohms
Return Loss:	Minimum -30 dB to 3GHz
Insertion Loss:	LESS THAN 10db to 3GHz
Shielding Effectiveness:	Ehanced by 25dB
Operating Temperature:	-40° F to +140°F(-40°C to +60°C)
Cable Retention:	45lbs minimum
Meets or exceeds all SCTE Specifications
